BD18V battery adapter with 12V DC port

Model: BD18V
Output voltage: 18V
Output current: 5.0V
Output power: 90V
Input voltage: 0-220V
Input plug type: Flat

Compatible power tool models: BD18V and 20V lithium batteries

1. Input voltage: DC 14-21V.

2. Output voltage: USB port: 5V, maximum output current: 2A.

3. DC outlet port: Output voltage: 12V, maximum output current: 5A.

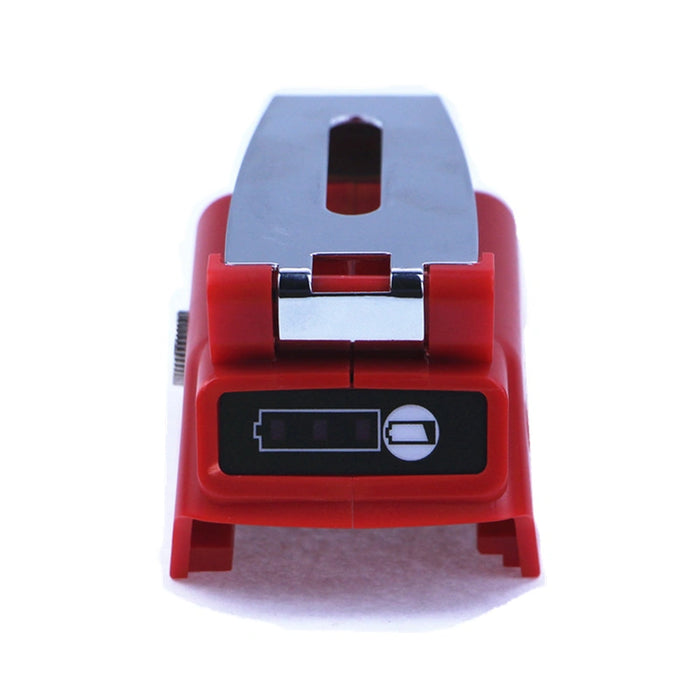

4. Battery level indicator. When the converter is plugged in a battery, the battery indicator will light up for about 5 seconds and then turn off. If the indicator is off, press the battery indicator button once; the indicator will light up for about 5 seconds and then turn off. If the indicator light remains on, it indicates that the battery needs to be charged.

1. If all three lights light up, the battery level is greater than 80%.

2. If all two lights light up, the battery level is greater than 50%.

3. If one light lights up, the battery level is greater than 20%.

4. If one light flashes, the battery level is less than 10%.

5. If all three lights flash, the battery level is exhausted and the converter stops outputting.

V. Product Features

1. Short-circuit protection

2. Overcurrent protection

3. Undervoltage protection

Note: If the output is lost due to a short circuit or overcurrent protection, disconnect the converter from the battery and reconnect it to restore output.
